4 Side Sealing&Packaging Machine

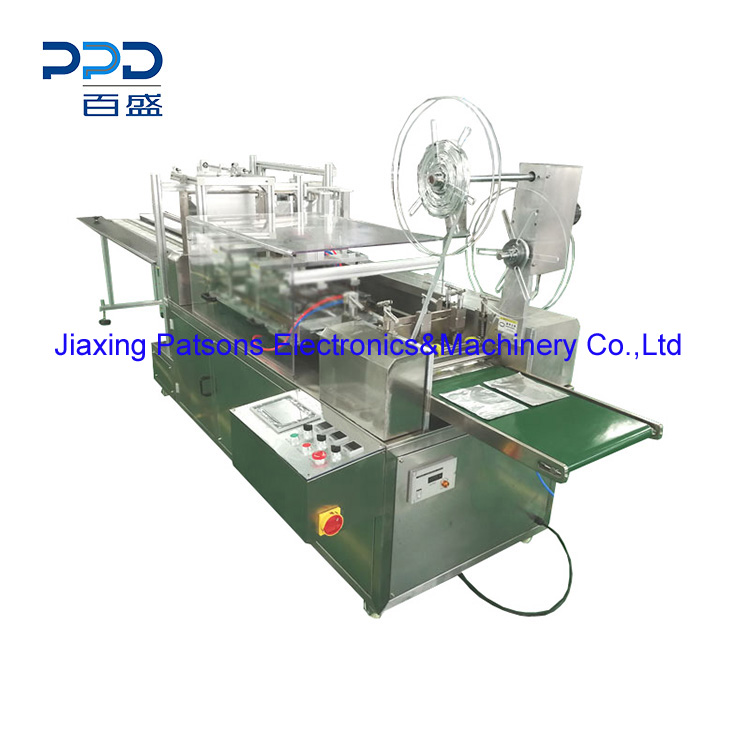

Pregnancy Test Packaging Machine
PPD-PTP80

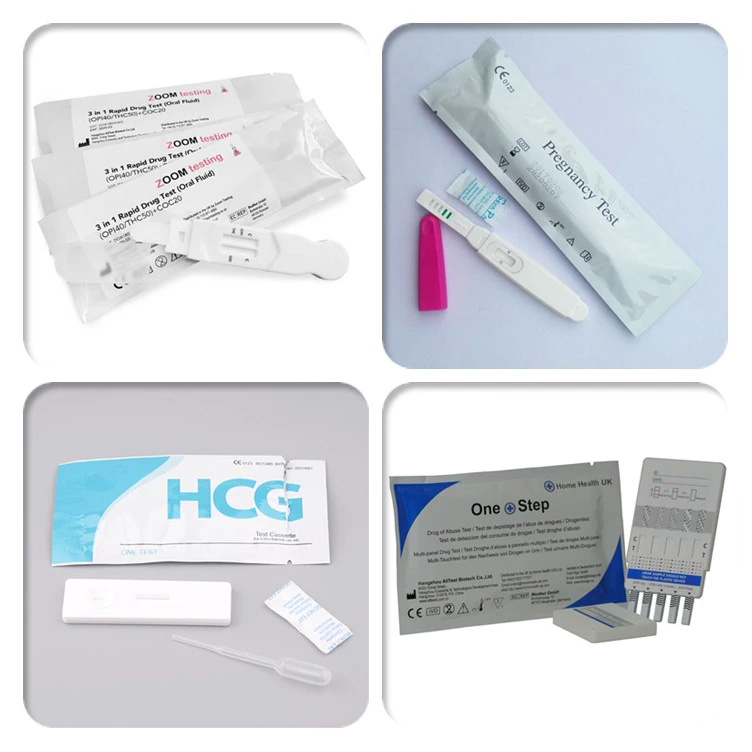

Pregnancy test packaging machine is specially designed for packaging of pharmaceutical products such as pregnancy test kit, drug kit and blood test kit eac.Machine adopts man-machine interface, the main engine is controlled by all servo motors, the length of bag making is accurate and stable.
Features：
1. Machine adopts PLC programmable controller to program the operation of the whole machine.
2. The speed of the host, the set bag length, the compensation amount, and the output will be displayed on the screen, which is clear at a glance.
3. Photoelectric detection of color code, automatic follow-up.
4. The use of magnetic powder control drive can balance the tension of the packaging material and the whole machine runs stably.
5. Waste collection device:Automatic waste collection to prevent waste accumulation.
Technical Data:
Name:Pregnancy Test Packaging Machine
Model:PPD-PTP80
Bag size:180x60mm(LxW) or as customized.
Packaging materials: PE/OPP, PE/PET paper film, aluminized film, aluminum film and other composite film.
Packaging film size:OD≤350mm
Packing speed:40-80pc/min
Voltage:220V,50hz
Power:5.5Kw,motor 2.2KW heating 3.3KW
Working pressure: 0.6-1.0MPa
Weight:720kg
Packing size:2600x1900x1800mm
