4 Side Sealing&Packaging Machine

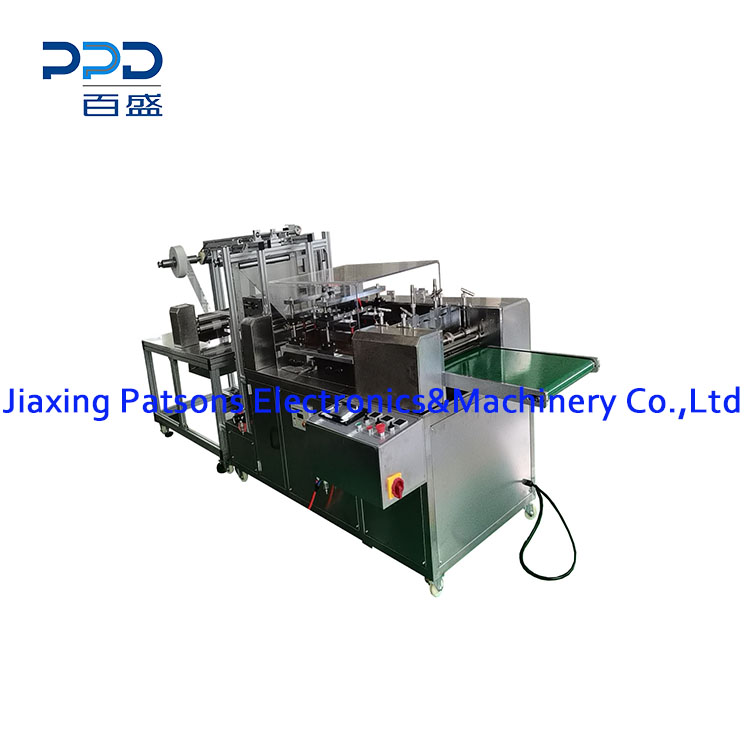

Fully Auto Paraffin Gauze Pad Packaging Machine
PPD-PGPP50

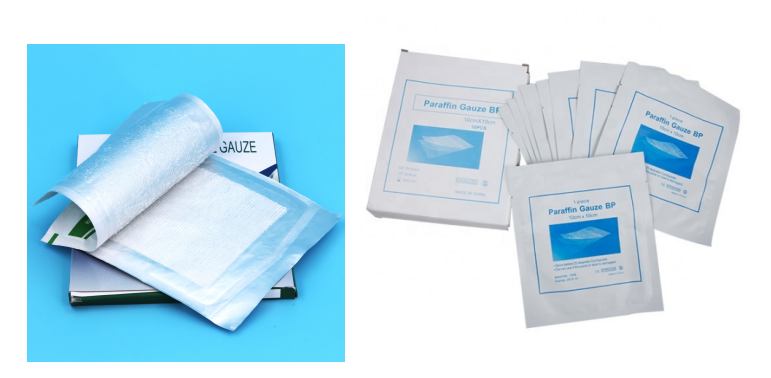

Fully auto paraffin gauze pad packaging machine is use to gauze cut, immersion, up and down paper, slicing and automatic packaging.Features:
1. Machine is based on advanced servo technology, PLC programmable controller intelligently controls the operation of the whole machine.
3. Different packing materials can be choose: paper+film, paper+paper etc
3. Automatic feeding,automatic cutting,automatic immersion,automatic packaging,high efficient.
Main Data:
Name:Automatic Paraffin Gauze Pad Packaging Machine
Model: PPD-PGPP50
Gauze sheet specifications: 100x100mm or as customized size.
Packing bag specification: 150x160mm or as customized size.
Packaging film specifications: diameter ≤ 350 mm, width 150 mm, inner diameter of paper core 76.2mm
Applicable raw materials: coiled, 20-40g/㎡ gauze roll
Gauze roll specifications: diameter ≤600mm, width 100 mm
Coiled paper specifications: diameter ≤400mm, width 130 mm
Inner diameter of raw paper core: Φ 76.2mm (=3")
Speed：30-50pc/min
Total power: 220v, 50hz, 5 kw
