4 Side Sealing&Packaging Machine

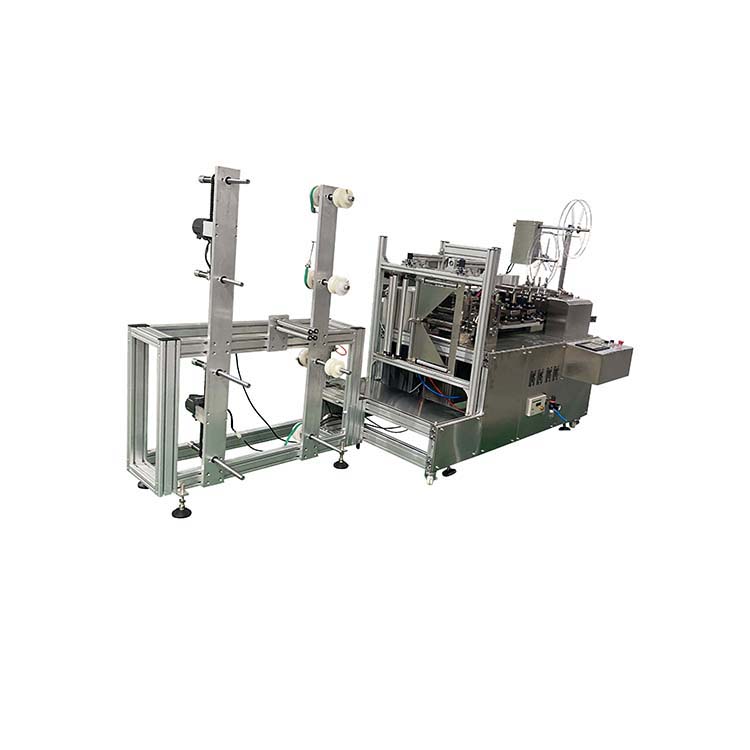

Disposable Oral Thin Film Packaging Machine
PPD-OTFP120
Disposable oral thin film packaging machine is ideal for four side sealing packaging of bilayer oral thin film, oral thin film, oral film strip, multi-layered oral thin films, fast dissolving oral thin films, orally/oral dissolvable films, mouth dissolving film, oral soluble film, oral dissolvable films etc.It adopts 4 lanes running,speed at 50-120 bags/min, color touch screen operation interface servo drive system,PLC controller to control the whole machine operation; feeding, film pulling, heat sealing operation, and bag cutting are all driven by servo, with high bag making accuracy and stable operation.
Features:
1. Uniquely designed bag making mechanism: can make bags with text patterns on both sides of the bag.
2. Uniquely designed film feeding mechanism.
3. Scientific and stable heat sealing mechanism.
4. The whole machine design is directly visualized, the mechanical mechanism is clear at a glance, and maintenance is simple
5. It can be equipped with a mouth-soluble film longitudinal slitting system for online slitting.
Main Data:
Name:Disposable Oral Thin Film Packaging Machine
Model:PPD-OTFP120
Packaging size:87*41mm or customized
Speed:50-120 pack/min
Packaging film material laminated paper, gummed paper, PE, etc., diameter ≤ 350mm, film width ≤ 350mm
Voltage:220V, 50hz
Machine weight:720kg
Packing size:2550*1400*1510mm (L*W*H)
