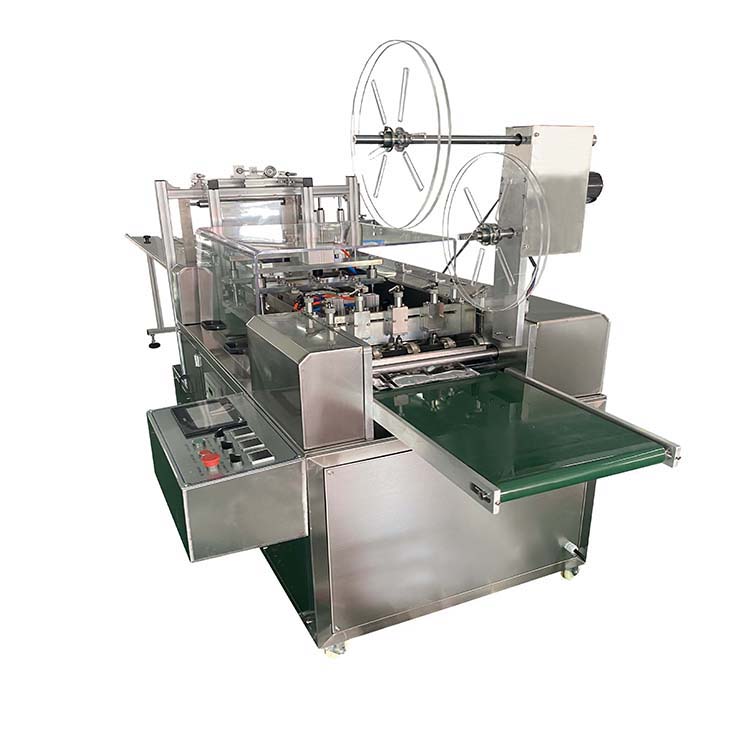

4 Side Seal V-Line Lifting Band Packaging Machine

PPD-VLPM80

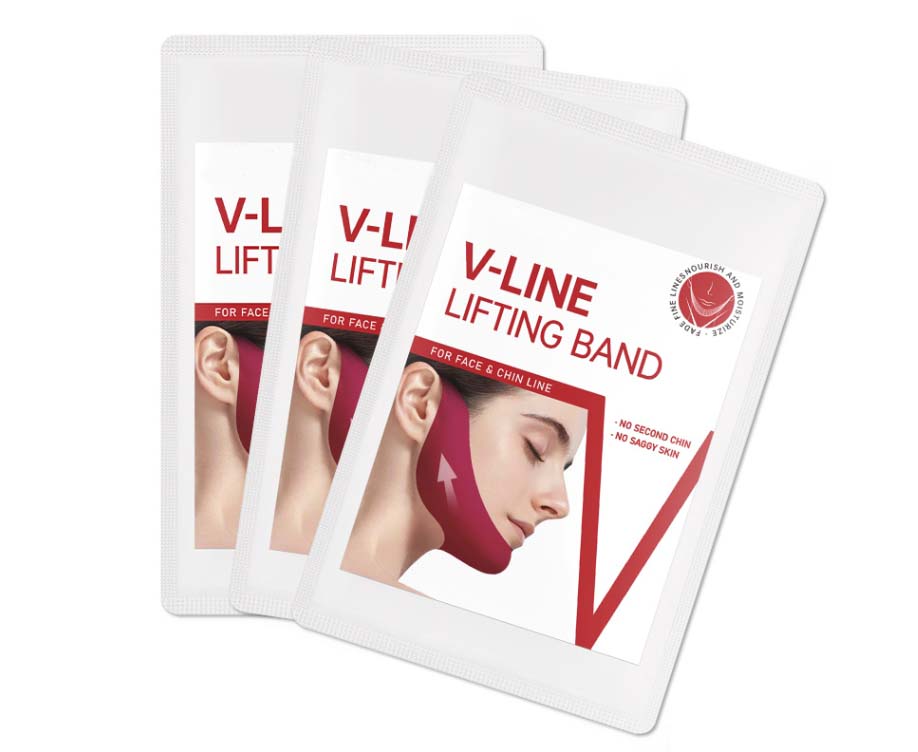

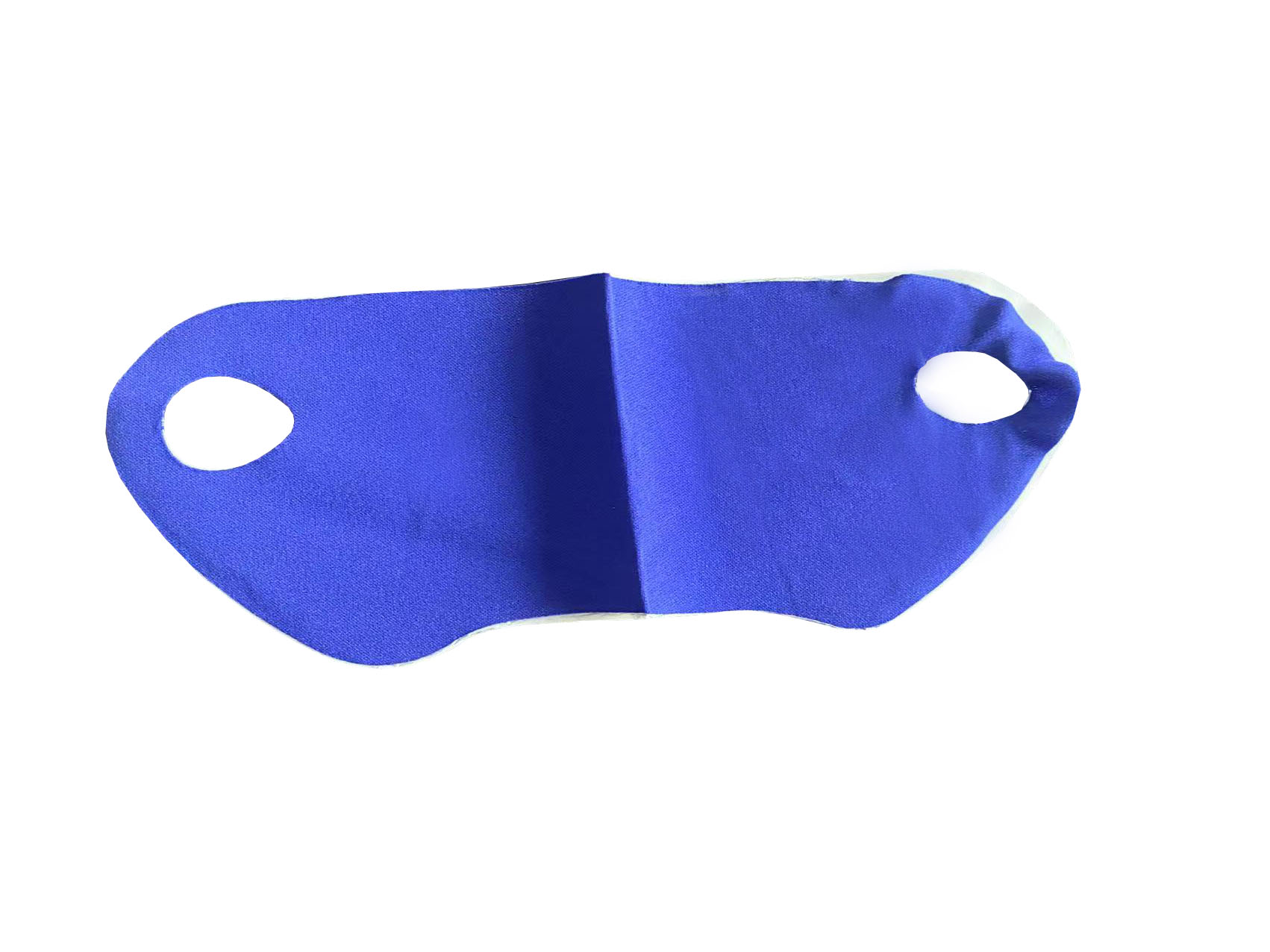

4 side seal v-line lifting band packaging machine is ideal for packaging of V-line lifting band,facial mask,eye patch,nose strips,wound dressing patch,warm patch,cooling gel patch etc.


Features:
1.Color touch screen control, easy parameter setting.
2.Machine adopts 4-axis servo drive system,PLC programmable controller intelligently controls the operation of the whole machine.
3. High-sensitivity photoelectric sensor tracking, making the sealing and cutting position more accurate.
4. Positioning stop function, no waste of wrapping film.
5.Independent guide pillar mold base, mobile synchronous heat sealing system, the temperature ofthe sealing surface is more uniform and stable, the sealing edge is tight.

Main Data:

Name: 4 Side Seal V-Line Lifting Band Packaging Machine

Model: PPD-VLPM80

Bag making size:200*160mm or as customized size

Speed:40-80pc/min

Voltage: 220V 50Hz

Motor power:2.2kw+heating power 1.8kw

Air supply: 0.4-0.6mpa

Face Mask Packaging Machine, Nose Patch Packaging Machine, Eye Patch Packaging Machine
