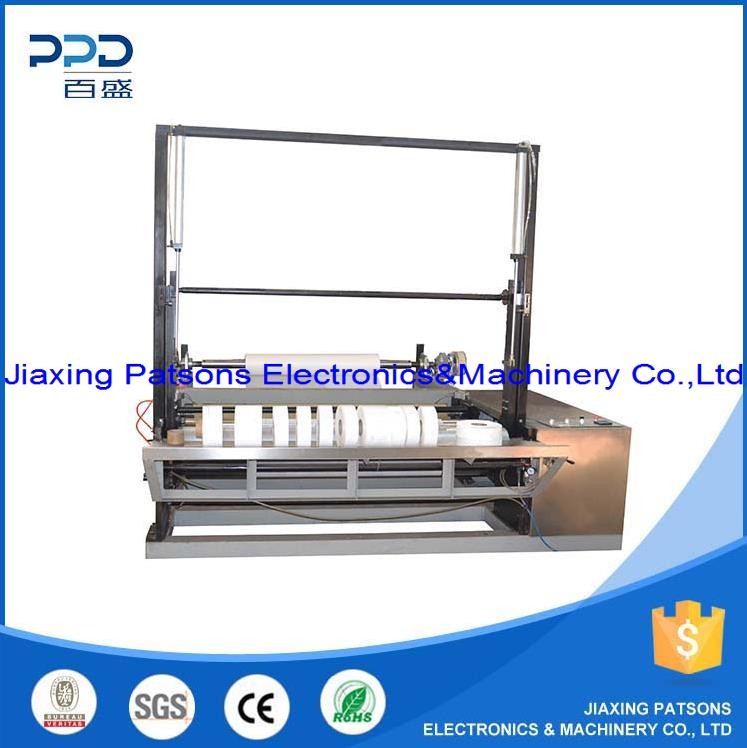

Pneumatic Knife Nonwoven Fabric Slitting Rewinding Machine

PPD-PNF1300

Pneumatic knife nonwoven fabric slitting rewinding machine is mainly used for slitting and rewinding large jumbo roll into small size nonwoven fabric rolls.
The machine adopts pneumatic technology with high cutting speed, smooth material cutting, stable operation, convenient and reliable operation.

Features:
1. The unwinding tension is adjusted by electromagnetic powder brake and manual tension controller. (automatic tension system)
2. The tension reeling shaft is used for the reel; the tension retraction shaft is adopted for the rewinding reel.

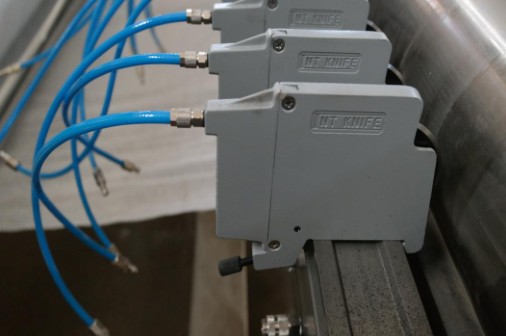

3. Pneumatic cutting system
4. Automatic counting.

Main data:
Name: Pneumatic knife nonwoven fabric slitting rewinding machine Specifications
Model: PPD-PNF1300
Jumbo roll width:1300mm
Applicable raw materials: 40-150g/m2 non-woven fabric
Cutting parameters: cutting width error ±1mm, roll end surface flatness ±1mm
Raw material ID: 3inch
Design speed: max200m/min
Total power: 380V 50HZ 3.5-7.5 kw
Weight:2500kgs
Packing size:2800x1600x2200mm

Spunlace Nonwoven Cloth Slitting Machine, Nonwoven Fabric Roll Slitting Machine, PP Nonwoven Fabric Roll Slitting Machine
