Nonwoven Fabric Slitting Rewinding Machine

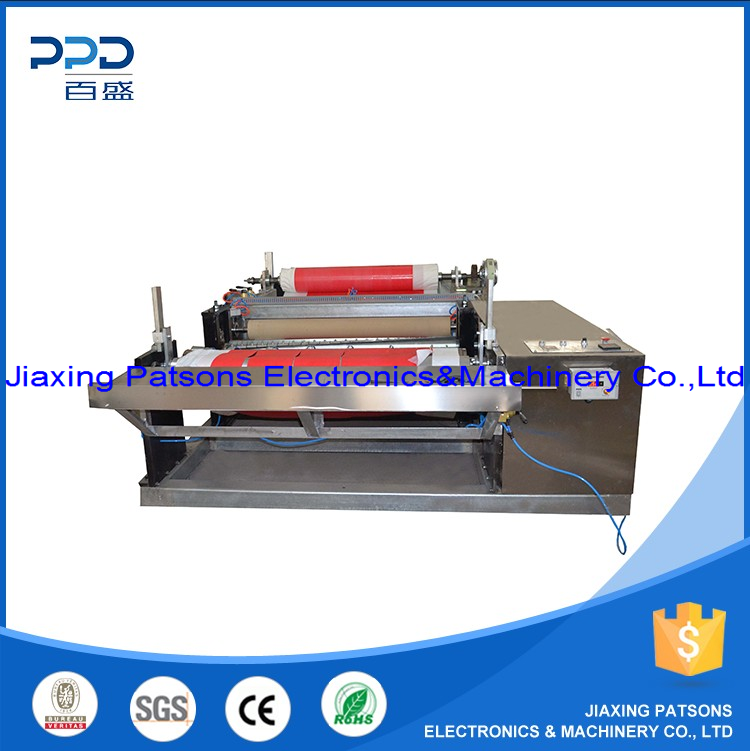

Coreless nonwoven cloth slitter rewinder
PPD-CNW1300
Coreless nonwoven cloth slitter rewinder is suit for slitting rewinding of spunlace non-woven roll, PP non-woven roll, hot-rolled non-woven fabric, industrial dust-free paper etc.This model is coreless model,can slit the nonoven cloth without paper core,save the cost of raw mateiral.

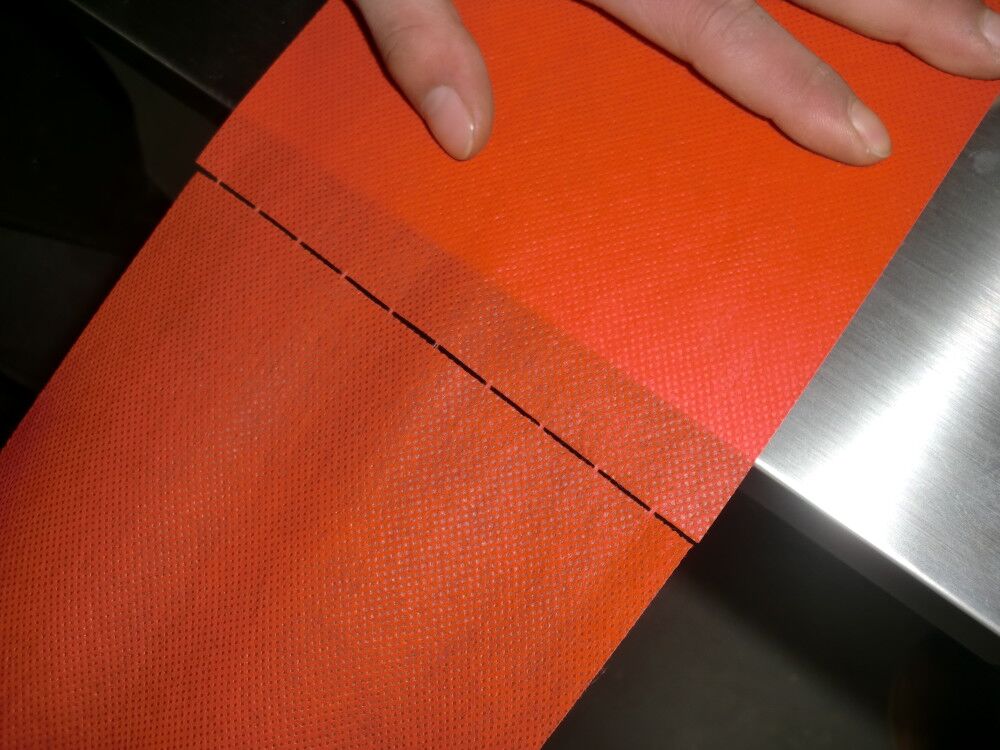

The machine is a multi function model,it also can add perforation device during the process of slitting and rewinding.
Technical Data:
Name: Coreless nonwoven cloth slitter rewinder
Model: PPD-CNW1300
Raw material: 35-80g/m2, spunlace non-woven fabrics, hot-rolled non-woven fabrics, industrial dust-free paper
Unwind roll width:1300mm
Unwind roll OD:1000mm
Unwind roll paper core inner diameter :Φ 76.2mm (=3")
Slitter rewinder roll width:max1300mm
Slitter rewinder roll ID:20mm,25mm option
Slitter rewinder roll OD:6000mm
Design speed:150m/min
Total power: 380V 50hz, 3.7 kw
Note:Any specifications can be customized.
