Nonwoven Fabric Slitting Rewinding Machine
Gauze Roll Slitting Machine
PPD-GSM2200

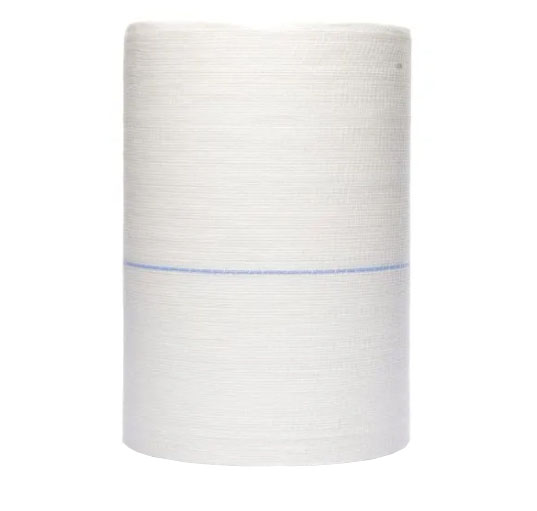

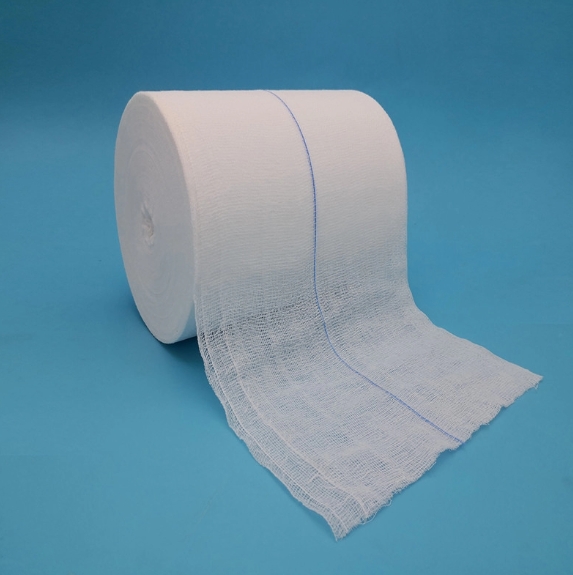

Gauze roll slitting machine is mainly used for trimming or slitting wide-width gauze rolls, cutting the roll-shaped gauze into several rolls of required size.The machine is mainly used in conjunction with the gauze folding machine.
Features:
1. Made of steel plate welding and spray painting, with balanced angles, the machine is stable at high speed;
2. Unwinding uses a 3-inch air-expanded unwinding shaft, with a maximum unwinding diameter of 1000mm and equipped with a magnetic powder tension controller;
3. Rewinding uses a 3-inch air-expanded reel and a magnetic powder tension controller, which is easy to operate, with a maximum rewinding diameter of 1000mm and beautiful and neat rewinding;
Technical Data:
Name: Gauze Roll Slitting Machine
Model: PPD-GSM2200
Unwinding inner diameter: 76mm
Unwinding outer diameter: max1000mm
Rewinding inner diameter: 76mm
Rewinding outer diameter: max680mm
Number of cutters: 10 sets, installed on the machine
Speed: 5-150m/min
Power: 5.5kw
Voltage: 380V, 50Hz
Air pressure: >0.5Mpa
