4 Side Sealing&Packaging Machine
ODF Vitamin Oral Film Coating Packaging Machine

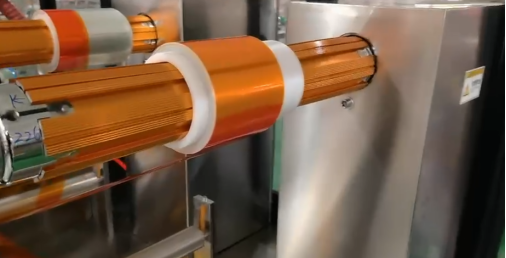

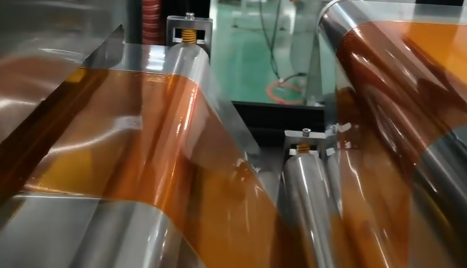

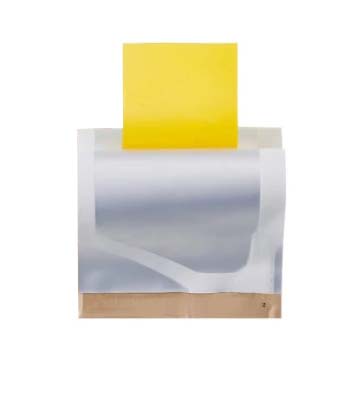

ODF vitamin oral film coating packaging machine adopts solvent to coat the release film, and forms a uniform film through temperature control and drying. After the material is collected into a roll, the dried film is cut into single pieces and packaged by four side packaging machine.Machine can manufacture and packaging of ODF vitamin oral film,dietary supplements film,fast dissolve oral film,tadalafil oral dissolve film,nicotine oral film,fresh breath oral strips for dogs & cats,ondansetron oral dissolving film,oral dissolving film, memantine hydrochloride oral dissolving film,montelukast sodium oral dissolving film etc.
ODF vitamin oral film coating and packaging machine is a production line, which consists of 2 parts: ODF vitamin oral film coating machine and ODF vitamin oral film packaging machine.
Main Data：
Name:ODF Vitamin Oral Film Coating Packaging Machine
Coating width:max300mm
Coating thickness:0.02-0.1mm
Coating speed:max1m/min
Base material width:360mm, outer diameter ≤350mm, inner diameter: 76mm
ODF size: 40mm x 25mm (L x W)
Bag size: 86mm x 45mm (L x W）
Packing speed:Max120 bags/min
Voltage:220V/380V,50Hz
