3 Lanes Four Side Seal Medical Plaster Packaging Machine

PPD-3L120

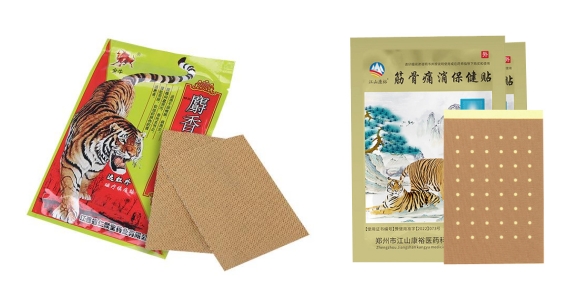

3 lanes four side seal medical plaster packaging machine is mainly design for four side seal pack of medical plaster,wound dressing,surgical gloves, face mask,cooling patch,warm patch,foot patch,eye patch etc.It works with 3 lanes production,servo motor control,heat sealing system,continuous running of packaging film with stable tension,simple in operation.

Production process:
Place plaster at the feeding conveyor belt → automatic pushing → sealing→ bag making → cutting → product deliver

Features:
1.Three feeding channel,high speed,max120 bags per minute.
2.Multi pieces,5 pieces per sachet.
3.Servo motor and PLC programmable controller intelligently controls the operation of the whole machine,simple in operation.

Main Data:

Name:3 Lanes Four Side Seal Medical Plaster Packaging Machine

Model:PPD-3L120

Plaster size:120*150mm

Sachet size:as customized(5pcs per sachet)

Speed:max120pcs/mim

Suitable packing film:aluminium foil paper,foil film, composite packaging film, coated paper, etc.,

Packing film diameter:≤350mm

Packing film width:According to the sachet size

Voltage:220v,50Hz

Total power:1.5kw (motor),3.3kw(heated)
