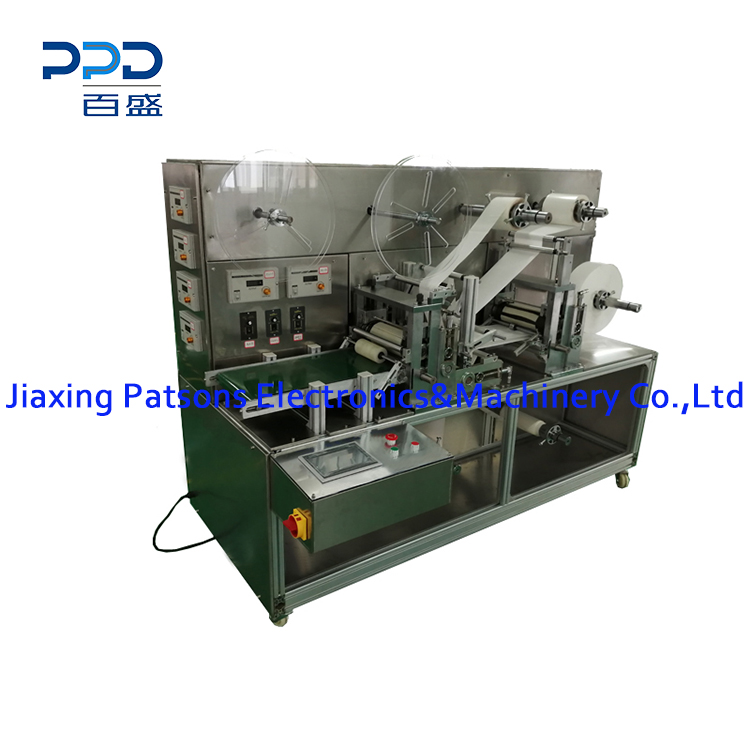

Automatic Medical Dressing Patch Forming Machine
PPD-MDP300

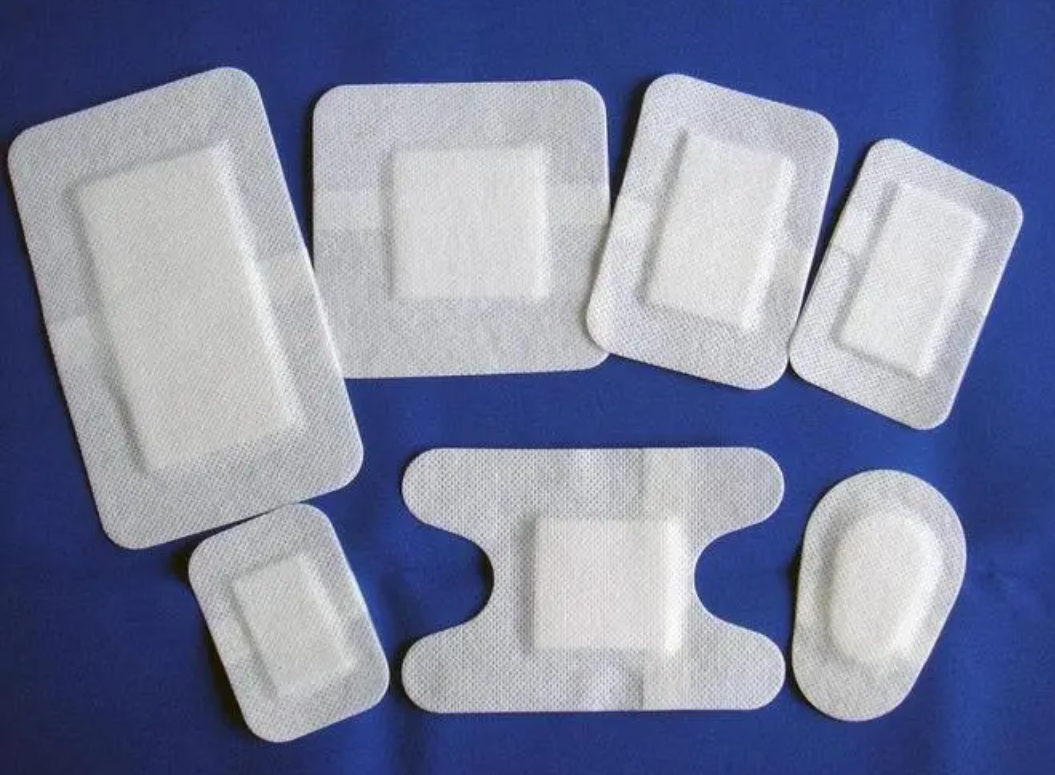

Automatic medical dressing patch forming machine adopts full servo drive, and the continuous roll cutting, compounding and roll cutting and forming of tape + cotton + release paper can be completed automatically in one machine.The machine is suitable for processing non-woven dressings, PU waterproof dressings, wound dressings, self-adhesive sterile dressings, infusion patches, indwelling needle patches and other dressing products.
Features:
1. The cotton core traction and roller cutting are all controlled by servo, and the tension between the traction and the roller cutter is controlled, making the operation simple.
2. The position of the cotton core attached to the tape can be adjusted online.
3. The cutting position between the cotton core cutter and the application shape cutter is adjustable.
4. One machine can produce a variety of application specifications, and replacing the roller cutter is simple, easy and fast.
Process flow:
1. Put the adhesive on the machine → peel off the tape paper → 2. Roll the absorbent pad → paste it to the tape → 3. Fold and compound the left and right release paper → 4. Roll cutting and forming → Output the finished product (automatic counting)
Main Data:
Name: Automatic Medical Dressing Patch Forming Machine
Model: PPD-MDP300
Wound dressing size: 300 x 100mm(L x W)
Inside cotton pad size: 250 x 50mm (L x W)
Bottom tape specs: non-woven tape, breathable PE tape, PU tape and other base materials, diameter ≤ 400mm, width ≤ 350mm, inner diameter 76.2mm
Speed: 100-200 pieces/min
Voltage: 220V
Power:50Hz, 4Kw
