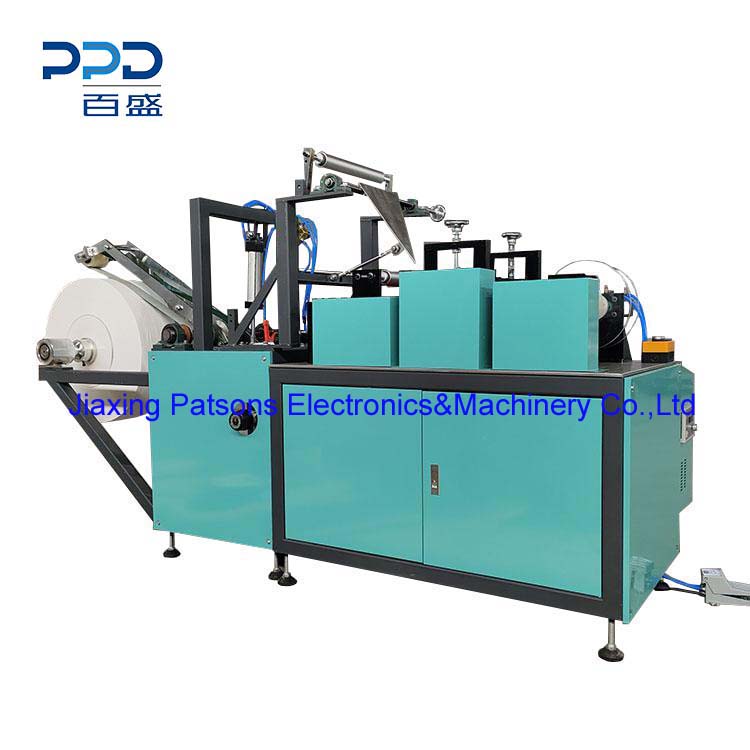

Nonwoven Cloth Folding Perforation Rewinder

PPD-NWFPR200

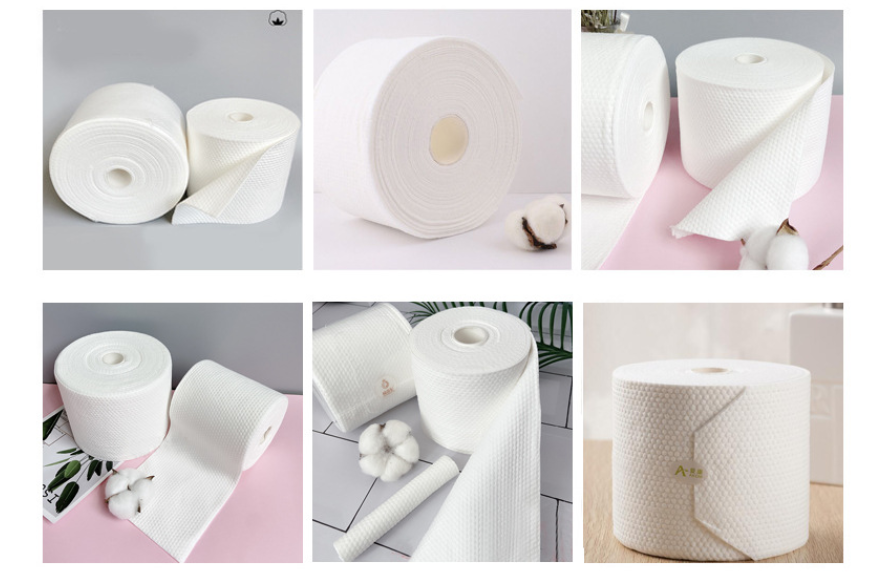

Nonwoven cloth folding perforation rewinder is mainly suitable for the soft towel rolls of various fabrics such as pearl grain, mesh cloth, plain cloth, wood pulp cloth, wood pulp paper and so on.

Features:
1. Circular cutting type round knife slitting.
2. Trapezoidal wall plate type 304# stainless steel folding former, each component is equipped with an independent adjustment handwheel to adjust the width and narrow size of the fold, which is convenient and flexible.
3. Folding with 304# stainless steel small side folding former, stable performance.
4. Wire bonding device adopts: hard surface gear type turbine box with spiral cutter shaft for wire bonding, and the wire pitch can be adjusted from 100-600mm.
5. The rewinding adopts double drum type, with high friction and adjustable winding tightness.

Technical Data:

Name:Nonwoven Cloth Folding Perforation Rewinder

Model: PPD-NWFPR200

Unwinding diameter: max1000mm

Rewinding diameter: max220mm

Speed: 1400r/min

Production speed: 3-5 rolls/min

Power supply voltage: 380V/50Hz

Total power: 2.2kw

NOTE: Different sizes can be customized.

Nonwoven Fabric Folding Perforation Rewinder, Soft Towel Rewinder, Facial Towel Folding Perforation Rewinder
