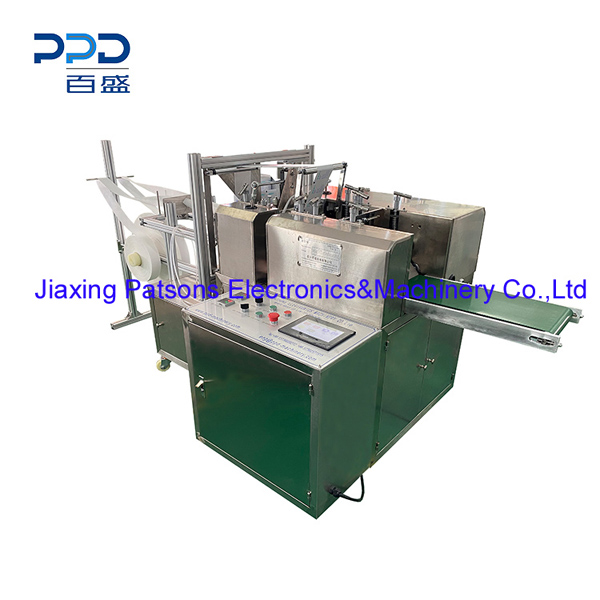

Big Size Alcohol Prep Pad Packaging Machine

PPD-APP45

Big size alcohol prep pad packaging machine is suitable for packaging and processing big size of alcohol disinfection pad, alcohol wipes, alcohol cotton pad, iodophor disinfection pad, isopropyl alcohol disinfection pad, povidone iodine pad, nail polish removal pad, computer screen wipes, glasses cleaning wipes and other products.

Features:
1. Color touch screen control interface
2. PLC program and servo motor control
3.The specification of inside non-woven fabric is generally 90×45mm: after folding is 45x45mm,2ply
4.Production ability: 120-140bags / min

Production process:
Packing material load on the machine→nonwoven folding→packing film and nonwoven fabric cutting→adding alcohol liquid→Liquid into the bags→making the bags→sealing the bags→cutting bag→conveyor products

Main Data:

Name:Big Size Alcohol Prep Pad Packaging Machine

Model:PPD-APP45

Alcohol swab inside nonwoven fabric unfold size:L 90mm × W 45mm

Alcohol swab inside nonwven fabric folded size:L 45mm × W 45mm

Nonwoven fabric  folding method:one fold，2ply

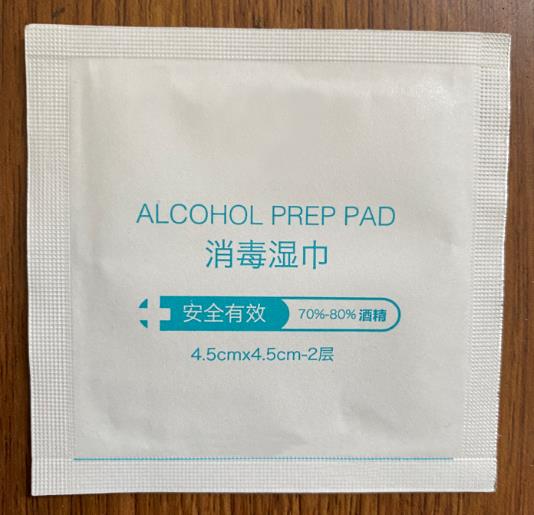

Bag size:L67mm × W67mm

Processing capacity:120-140pc/min

Nonwoven fabric specs:diameter≤600mm, width 90mm

Packing film specs:diameter≤400mm,width:268mm

Raw naterial diameter:3indiameter 76.2mm (=3")

Total power220v, 50hz, 2.6 kw

Weight:450 kg

Packing size:L: 2200×W:1200×H:1350mm

Alcohol Pad Packaging Machine, Alcohol Wipes Packaging Machine, Alcohol Swab Packaging Machine
