Alcohol Swab Machine

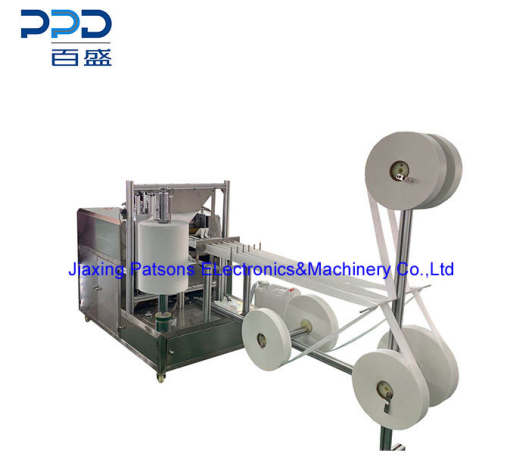

High Speed Alcohol Tampon Packaging Machine
PPD-ATP600
High speed alcohol tampon packaging machine is suitable for packaging and processing medical alcohol disinfection pad, alcohol wipes, alcohol cotton pad, iodophor disinfection pad, isopropyl alcohol disinfection pad, povidone iodine pad, nail polish removal pad, computer screen wipes, glasses cleaning wipes and other products.Features:
1. Color touch screen control interface ,PLC control,setting is convenient and fast
2. Closely sealed, no leakage, no blistering, flat and beautiful.
3. Production ability: max600bags / min
4.Inside non-woven fabric is 60×30mm,after folding is 30×30mm
5.High-sensitivity photoelectric eye color mark tracking, making the sealing and cutting position more accurate.
6.Independent PID control of temperature, better adapt to various packaging materials.
Technical Parameter：
Name：High Speed Alcohol Tampon Packaging Machine
Model：PPD-ATP600
Packaging form：Four-side sealing
Package material：PET/AL/PE,BOPP/PE/AL/PE,BOPP/PE/AL/PE,PET/AL/CPP,
Paper/PE/AL/PE,PET/PE,PET/AL/NY/PE
Inner material:30-80g/m2 Ari laid paper/spun lace/Spunlace Non-woven fabric etc.
Raw material inner diameter:76mm
Pack size:Inside non-woven fabric is 60*30mm,after folding is 30*30mm,sachet size :50*50mm
Folding way:one fold
Packing speed:max600bags/min
Liquid added range:0-5ml
Voltage:220V 50/60Hz
Power: 6KW
Air consumption:No need
Air supply:No need
