4 Side Sealing&Packaging Machine
Four Side Flocked Swab Packaging Machine
PPD-FSP120

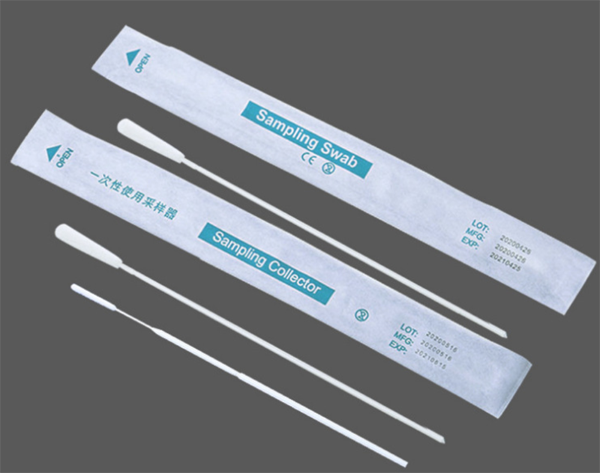

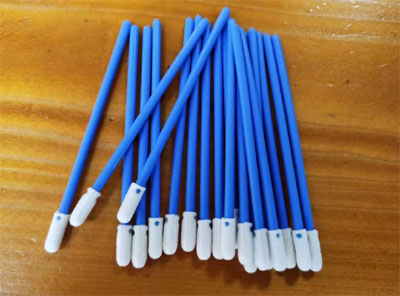

Four side flocked swabs packaging machine is suit for packaging of flocked swabs,specimen collection swabs,sampling swabs,oral swabs,nasal swabs etc.Features:
1. Hot-press sealing device, optional easy-to-tear mouth, independent guide pillar mold base, mobile synchronous heat sealing system, the sealing surface temperature is more uniform, more stable, and the packaging is exquisite.
2. Chinese and English bilingual touch screen control, man-machine interface, intelligent system control the parameters of the whole machine, and adjust the operation.
3. Linked film roll, taking into account two film unwinding mechanisms at the same time, packaging film installation is simpler and faster, paper + transparent film bag making.
4. The material conveyor belt is made of stainless steel, with 6 channels running at the same time, which is fast and efficient.
5. Low failure rate, high product quality, low maintenance and high temperature efficiency.
6. Simple structure, long service life and durability.
Main Data:
Name:Four Side Flocked Swab Packaging Machine
Model:PPD-FSP120
Bag size: L:150mm ×W: 30 mm (6 cavity) or as customized size
Processing capacity: 80-120 bags/min
Suitable packaging film: paper aluminum-plastic, pure aluminum, aluminum plating, coated paper, composite transparent film, etc., Packing film OD:max350mm
Total power: motor 2.2KW heating 3.3KW
Voltage:220v 50Hz
Air supply: 0.6-0.8Mpa
NOTE:Different size can be customized.
