4 Side Sealing&Packaging Machine
Four Side KF94 Packaging Machine
PPD-3L150

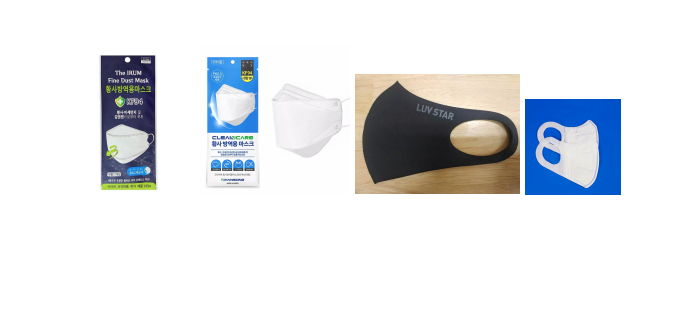

Machine is mainly design for four side seal pack of KF94 face mask,N95 face mask,3D mask,and any types of face masks. Machine works with 3 lanes production,servo motor control, heat sealing system,continuous running of packaging film with stable tension,simple in operation.Features：
1.3 bags at a time; 90-150 bags/min
2.Stable continuous feeding of mask，continuous running of packaging film with stable tension
3.Reciprocating flat pressure heat sealing, long heat sealing time, low material thickness requirements, and guaranteed sealing
Combined mould, different bag specifications, no need to change mould
4.Servo motor and PLC programmable controller intelligently controls the operation of the whole machine, which has the advantages of precise film feeding, stable material transfer, and precise bag cutting.
5.Combined heat-sealing mechanism: realize multi-specification bag making without changing molds.
6.Automatic cutting: V-shaped easy tear notch, hanging hole (butterfly hole, round hole, airplane hole, etc.)
7.Can be added date and batch number automatic coding system
Main Data:
Name:Four Side KF94 Packaging Machine
Model:PPD-3L-150
Bag size:270mmx110mm(LxW) or as customized size
Production ability:90-150pcs/mim
Suitable packing film:aluminium foil paper,foil film, composite packaging film, coated paper, etc.,
Packing film diameter:≤350mm
Packing width:≤520mm
Voltage:220v,50Hz
Total power: 1.5kw (motor),3.3kw(heated)
Machine weight: 800 kg
Packing size:2800×1800*1800mm
NOTE:Different sizes can be customized.
