Alcohol Swab Machine

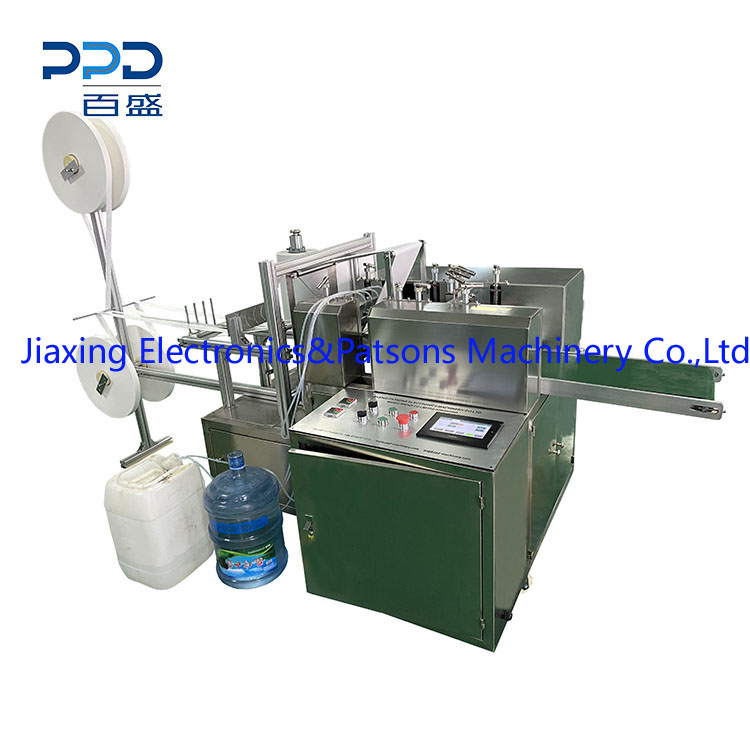

Alcohol Swab Pad machine
PPD-1P280
Alcohol swab pad machine is manufacture of alcohol swabs,alcohol pad,alcohol wipes etc small size products.Machine works with color touch screen system,servo motor
intelligent equipment, man-machine dialogue, superior performance, simple operation.
Production precess:
Nonwoven cloth and packing film load on the machine→nonwoven cutting→adding alcohol liquid→into the bags→making the bags→sealing the bags→cutting→sealing into final product.
Features：
1.Mainframe interface, beautiful setting is convenient and fast.
2.High-sensitivity photoelectric eye color mark tracking, digitally input the sealing and cutting position, making the sealing and cutting position more accurate.
3.Independent PID control of temperature, better adapt to various packaging materials.
4.Positioning stop function, no sticking of knife, no waste of film.
5. Stainless steel table, clean production without rust.
Main Data:
Name:Alcohol Swab Pad machine
Model:PPD-1P280
Packaging type：Four side sealing
Package materials：PET/AL/PE,BOPP/PE/AL/PE,BOPP/PE/AL/PE,PET/AL/CPP,Paper/PE/AL/PE,PET/PE,PET/AL/NY/PE
Inner material：30-80g/m2 Ari laid paper/spun lace/Spunlace Non-woven fabric etc.
Raw material inner diameter：76mm
Packaging film specification:40-110mm(Customized design)width:40-110mm(Customized design)
Folding way:None fold
Nonwoven width:3cm

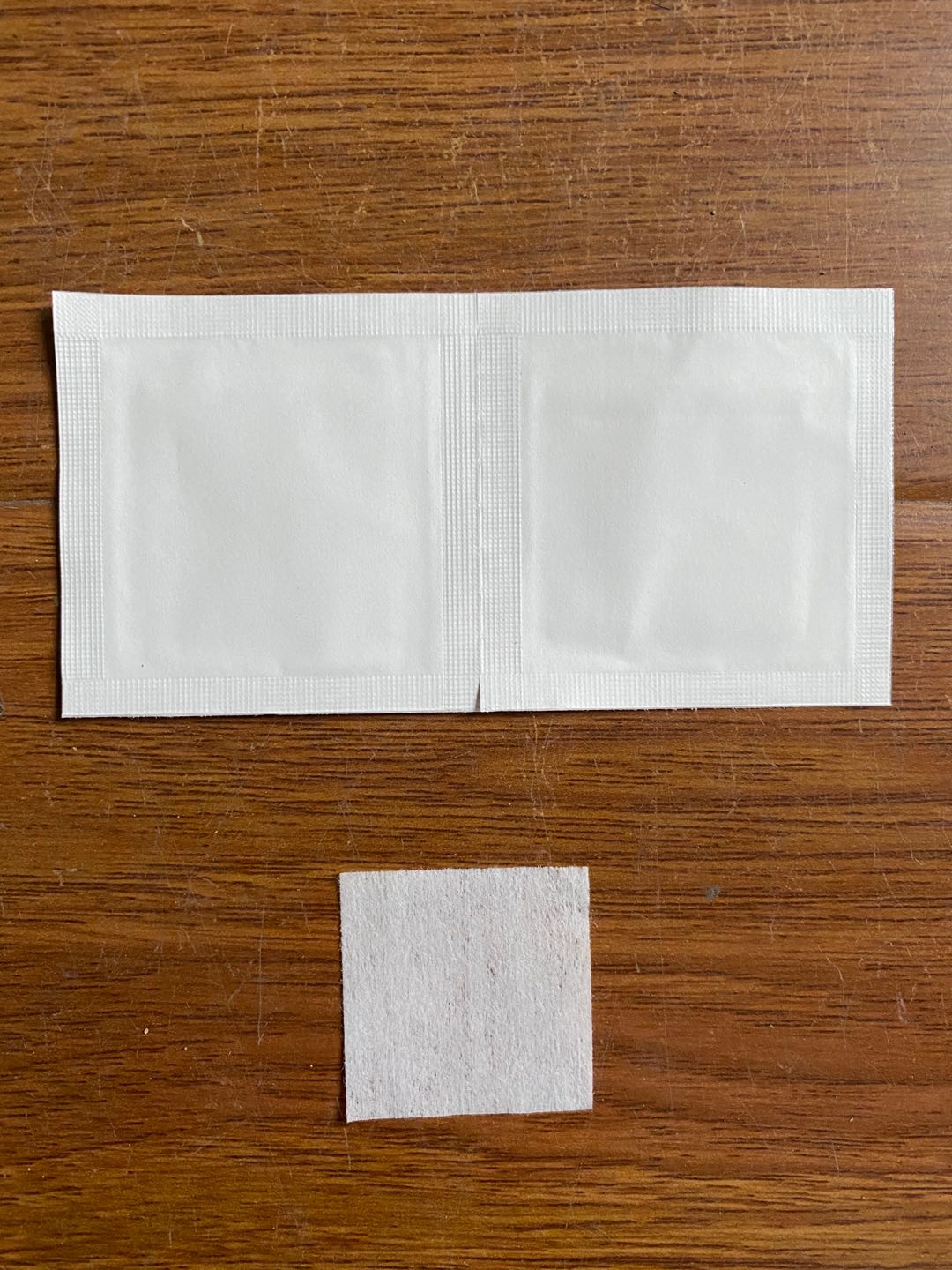

Pad size:3*3cm
Bag Size:5*5cm
Packing speed:240-280bags/min
Liquid added range:0.5-1ml
Voltage:220V 50Hz
Supply power:About 4.8KW
Air consumption:No need
Air supply:No need
NOTE:Differet sizes can be customized
