Alcohol Pad Machine

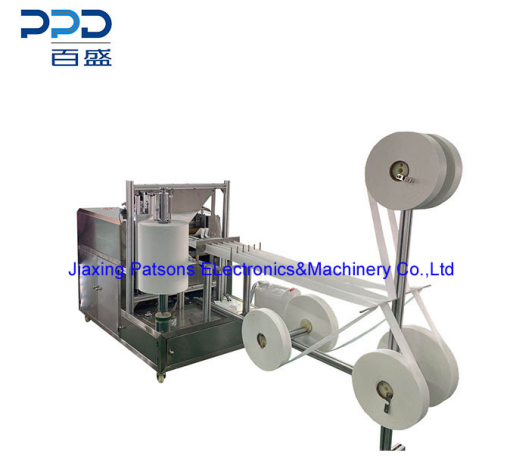

High Efficient Fully Auto Ethanol Pad Packaging Machine
PPD-6L540
High efficient fully auto ethanol pad packaging machine is a multi function model,can packaging pf ehanol pad, alcohol swabs, alcohol prep pad,iodine pad, BZK antisptic swab,remover pad and other small bag four side seal products.Machine is fully automatic model with 6 lanes high speed production,works with serve motor,independent temperature control,simple in operation and work more stablely.

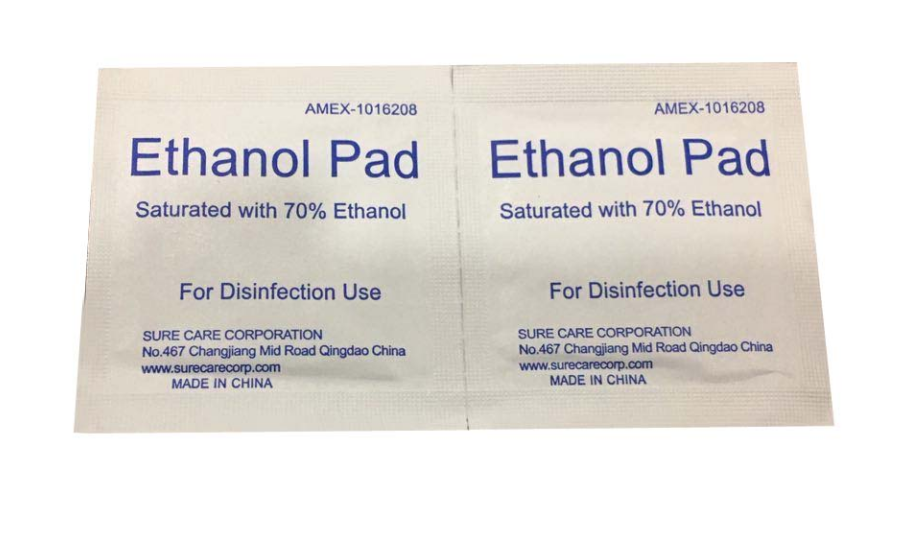

One time make 2 row at each two bags,two unit together by perforated line or separated,total 6 bags.
Process flow:
Non-woven fabrics and packaging film load on the machine → Non-woven fabrics in the vertical fold → Cut → Add liquid → Folded sheet output → Bag → Packaging → Sealing → Products
Features:
1.6Lanes work,high speed,high efficient.
2.PLC program ,touch screen setting,serve motor,independent temperature control for simple operation.
3.Vertical type of nonwoven loading,space save and more stabley.
Main data:
Name:High Efficient Fully Auto Ethanol Pad Packaging Machine
Model:PPD-6L540
Unfold size of nonwoven cloth: 60*30mm
Folded size of nonwoven cloth: 30*30mm
Bag size: 50*50mm
Packing speed: 500-540 packs/min
Motor power: 1.1kw
Heating power: 3.5kw
Voltage: 220V,50hz
NOTE:DIfferent specs can be customized.
