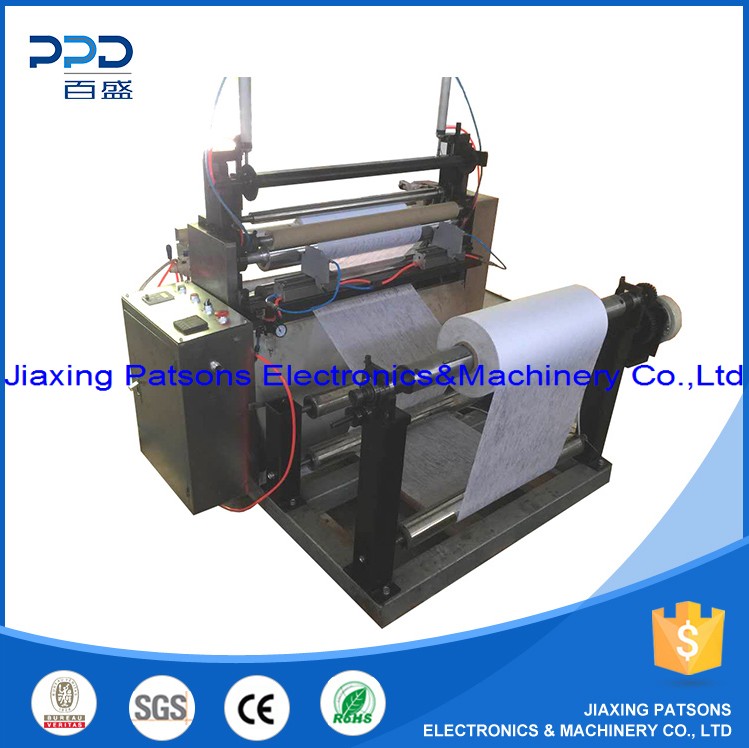

Industrial Nonwoven Wipes Rewinder

PPD-SMT600

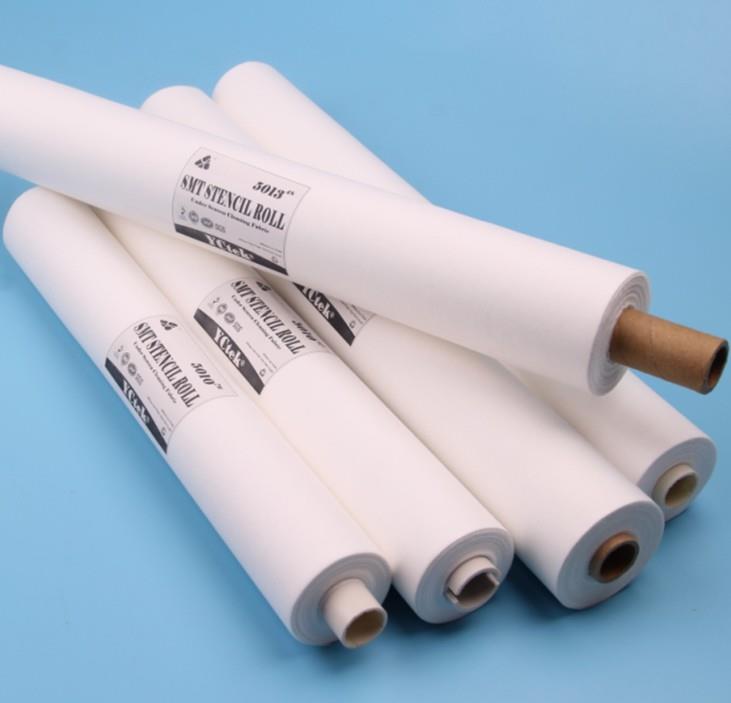

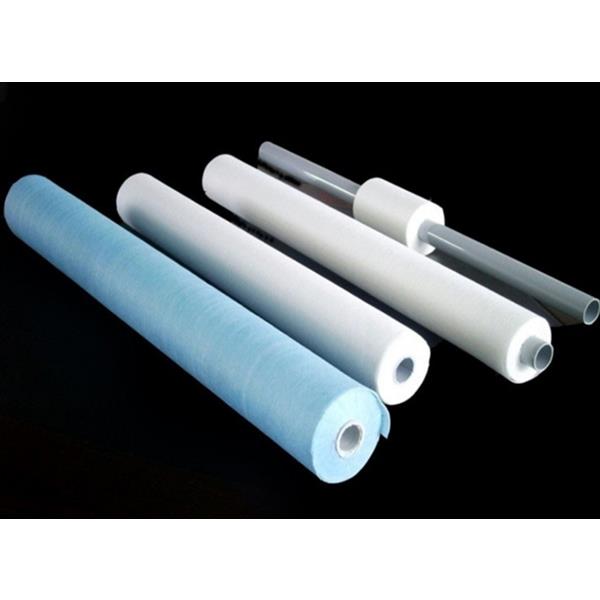

Industrial nonwoven wipes rewinder is made of 304 stainless steel.,it is design for rewinding of SMT stencil cleaning wiper roll,paper roll,nonwoven roll jumbo roll into small rolls.

Features:

1. Adopt frequency converter (Delta) speed regulation, and the production speed can be adjusted.

2. The unwinding tension adopts the electromagnetic powder brake, and the tension is conveniently adjusted according to the different reeling cylinders.

3.Automatic edge cutting,  automatic counting device.

4.Rewinding elastic adjustment mechanism.

5.Automatic correction system can be accept on machine.

Main data:

Name:Industrial nonwoven wipes rewinder

Model:PPD-SMT600

Jumbo roll width:600mm

Jumbo roll ID:76mm(3inch)

Jumbo roll OD:max1000mm

Rewind roll core ID:8-40mm option

Rewinding speed：80-120m/min

Rewinding Tolerance:Auto tension ≤ 0.5mm,Standard device ≤ 1mm;

Power：0.75kw

Voltage: 220V,50Hz

NOTE:Different sizes can be customized.



SMT Stencil Cleaning Wiper Rewinder, Industrial Nonwoven Wipes Rewinding Machine
