Nonwoven Fabric Slitting Rewinding Machine

Share to:

Send Inquiry

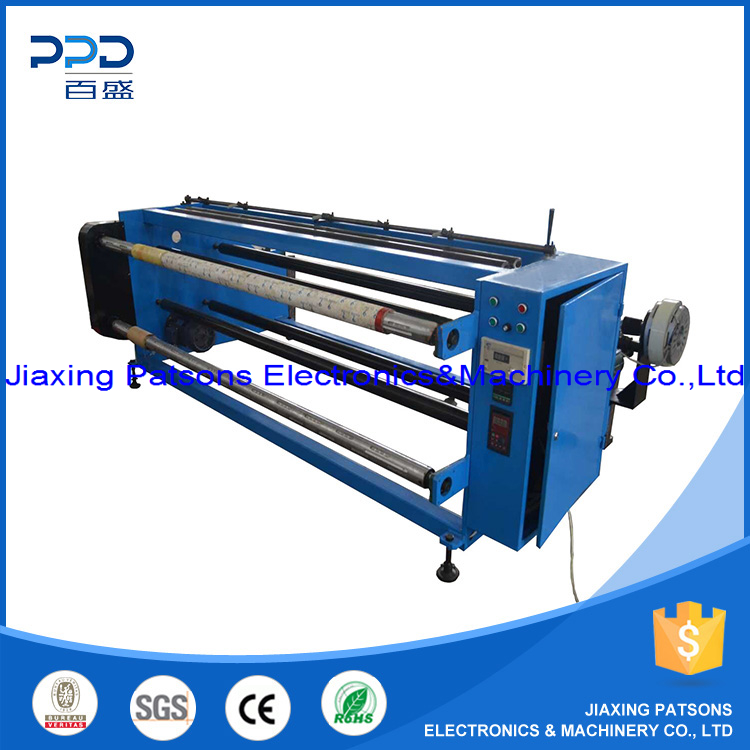

Polypropylene Nonwoven Roll Slitting Rewinder Machine

PPD-PPNSR

Polypropylene nonwoven roll slitting rewinder machine is special designed to slit rewind the jumbo roll of polypropylene nonwoven(pp non woven) into small width roll.
It adopts dual-shaft rewinding by blade cutting method,the operation procedure is very simple.

Main data:
Name:Polypropylene nonwoven roll slitting rewinder machine
Model:PPD-PPNSR
Jumbo roll width 1300mm
Jumbo roll inner diameter:3inch
Jumbo roll outer diameter:max1200mm
Slitting rewinder roll width:50-1300mm
Slitting rewinder roll inner diameter:2/3inch
Slitting rewinder roll outer diameter:max800mm
Desigh speed:300rpm/min
Voltage:220/380/415/450v,50/60hz option
Total power:3.7kw
Note:Different width and specification are acceptable for customized model.
