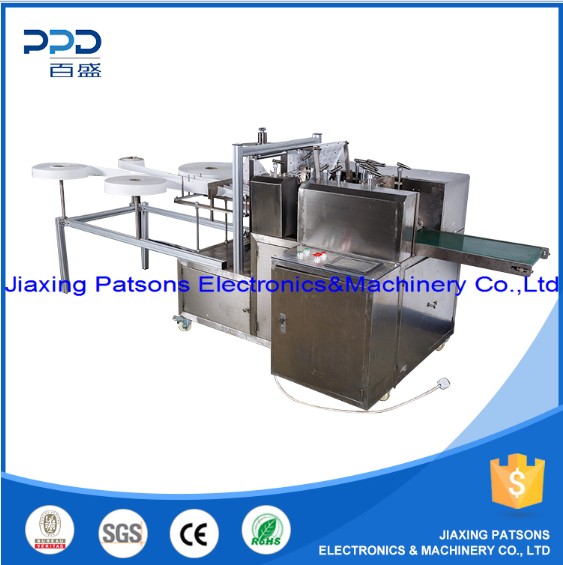

Alcohol Swab Pad Packaging Machine

PPD-2R280

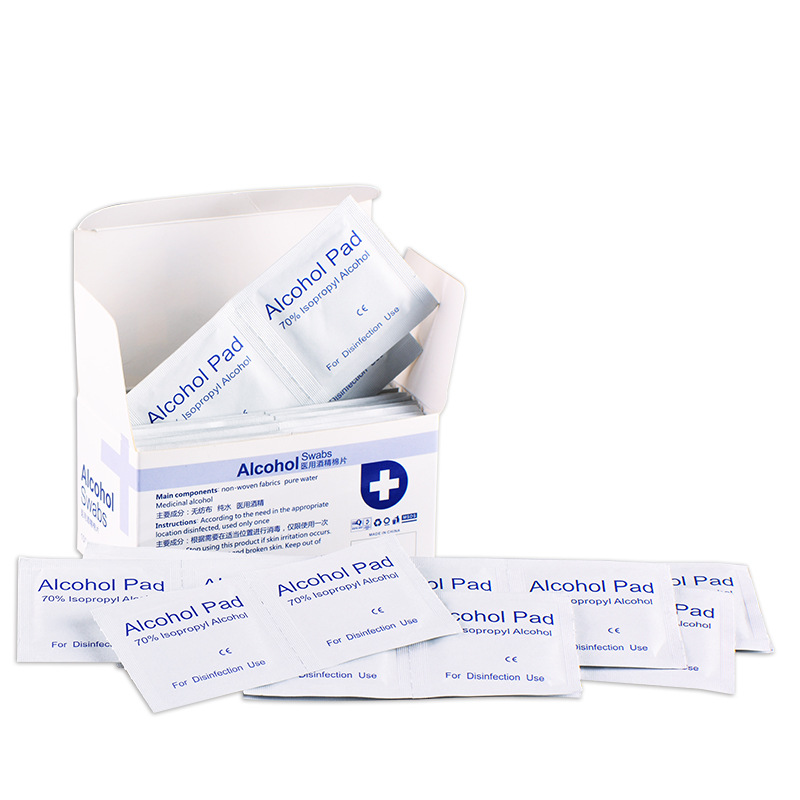

Alcohol swab pad packaging machine is suitable for packaging and processing medical alcohol disinfection pad, alcohol wipes, alcohol cotton pad, iodophor disinfection pad, isopropyl alcohol disinfection pad, povidone iodine pad, nail polish removal pad, computer screen wipes, glasses cleaning wipes and other products.

Features:
1. Color touch screen control interface
2. PLC control
3. Closely sealed, no leakage, no blistering, flat and beautiful.
4. Production ability: 240-280 bags / min
5. The specification of inside non-woven fabric is generally 60×30mm: after folding is 30×30mm

Main technical parameters:
Alcohol swab inside nonwoven unfold size: L 60mm × W 30mm
Alcohol swab inside nonwven folded size: L 30mm × W 30mm
Cotton sheet folding method: one fold
Bag size: L50mm × W50mm
Processing capacity: 240-280 bags/min
Alcohol pad material specification: Φ≤600mm, width 60mm
Raw material core diameter: Φ 76.2mm (=3")
Total power: 220v, 50hz, 2.6 kw
Equipment weight: 600 kg
Dimensions: L: 3500×W:1300×H:1500mm
Packing size: L: 2000×W:1900×H:1800mm

VIDEO LINK



alcohol swab pad machine, Medical pad machine, Cleansing pad machine
