4 Side Sealing&Packaging Machine
Caffeine Energy Oral Strips Machine
PPD-ODF300+PPD-ODFP120
Caffeine energy oral strips machine is specially designed and manufactured for making oral film on plastic film.Caffeine energy oral strips jolt the way through the 2pm slump and late nights with energy strips infused with caffeine, l-theanine, and balanced with B-Vitamins. Perfect for military, late night shifts, long drives, runs, or a simple afternoon pick-me-up.
Caffeine energy oral strips machine is consists of two parts，caffeine energy oral strips coating machine and caffeine energy oral strips packaging machine.
I.Caffeine Energy Oral Strips Coating Machine
Caffeine energy oral strips coating machine uses PLC,servo drive control,high precision and stable operation.
External heating machine, hot air circulation drying, segmented temperature control.
Main Data:
Name:Caffeine Energy Oral Strips Coating Machine
Model:PPD-ODF300
Coating width:max300mm
Coating thickness:0.02-0.1mm
Coating speed:max1meter/min
Base material width:360mm, outer diameter ≤350mm, inner diameter: 76mm
Voltage:380V,50Hz
Power:motor 1.5kw, heating 16kw
Air supply:0.6-0.8Mpa
II.Caffeine Energy Oral Strips Packaging Machine
Caffeine energy oral stripes packaging machine adopts PLC program and touch screen to control the machine,the feeding, film pulling, heat sealing operation, and bag cutting are all driven by servo, with high bag making accuracy and stable operation.

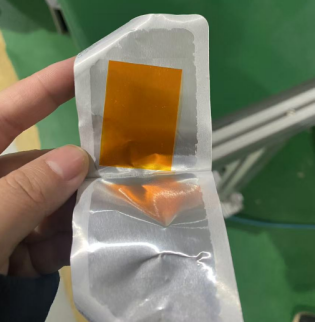

Unique design of film feeding device: After slicing the dissoling film, it will directly enters the packaging bag, which is stable and reliable.
Continuous, flat pressure, reciprocating operation.
Main Data:
Name:Caffeine Energy Oral Strips Packaging Machine
Model:PPD-ODFP120
ODF size: 40mm x 25mm(LxW)
Bag size:86mmx45mm(LxW)
Processing capacity:max120pcs/min
Packaging film material:Easy to peel film and other heat sealable
composite packaging film,
OD:max 320mm,Width:max 400mm
Voltage:220V 50Hz
Total power:motor 4kw heating 3kw
Air supply:0.6-0.8Mpa
