4 Side Sealing&Packaging Machine

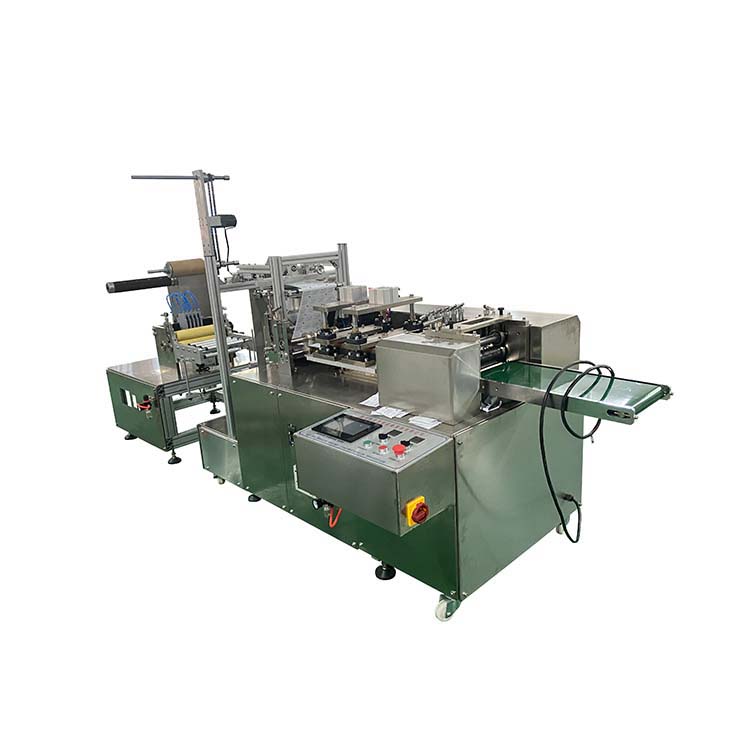

Cigarettes Smoking Oral Film ODF Packaging Machine
PPD-ODFP200
Cigarettes smoking oral film ODF packaging machine is ideal for packing film strips into pouch, such as oral dissolving films, mint strips, nicotine gum,cigarettes smoking oral film,mincotine mint gum, fast dissolve oral film,mouth dissolving film,oral soluble film,oral stamp,oral instant film,mint strip,ODF,OTF,fresh breath oral strips for dogs & cats,adhesive patch etc.Features:
1. Uniquely designed bag making structure: can produce packaging bags with text patterns on both sides of the packaging bag. Accurate registration.
2. Unique film feeding structure: the mouth-dissolving film slices directly enter the packaging bag.
3. Scientific and stable heat sealing structure: continuous, flat pressing, reciprocating operation. The heat sealing time is adjustable, the heat sealing effect is better, and the applicable materials are wider.
4. It comes with a mouth-dissolving film longitudinal slitting system, which can be slitting online.
Main Technical Data:
Name:Cigarettes Smoking Oral Film ODF Packaging Machine
Model:PPD-ODFP200
Oral dissolving film size:40mmx35mm (LxW）
Sachet size:86 mmx45 mm (LxW）
Packing speed:160-200 bags/min
Packaging film material:aluminum foil paper,composite packaging films etc OD≤320mm, width≤400mm
Voltage: 220V,50Hz
Power:7Kw(Motor:4kw,Heating:3Kw)
Main Configuration:
A. Electrical part
1. Color touch screen (XINJE TG765G-UT)
2. Programmable controller (XINJE XD5-48T6)
3. 5 servo motors (XINJE MS6S-80CS30B1-20P7)
4. 5 servo drives (XINJE DS5L-20P7-PTA)
5. Color mark positioning system. (GDJ612(N)W/R YATAI)
6. Discharging conveying transmission motor. (41K25RGN-C OUBANG)
7. Other electrical: relays, switch buttons etc. CHINT
B. Rack appearance and main mechanical transmission
1. The rack is made of national standard 40×40×2, 304 stainless steel square tube.
2. The protective cover is made of 1.2mm thick 304 stainless steel sheet metal welding
C. Random Accessories：
1. Tools----1Set 2. Thermocouples----1Set 3. Slitting blades----2Pcs
