4 Side Sealing&Packaging Machine
Automatic Band-aid Packaging Machine
PPD-BAM2500

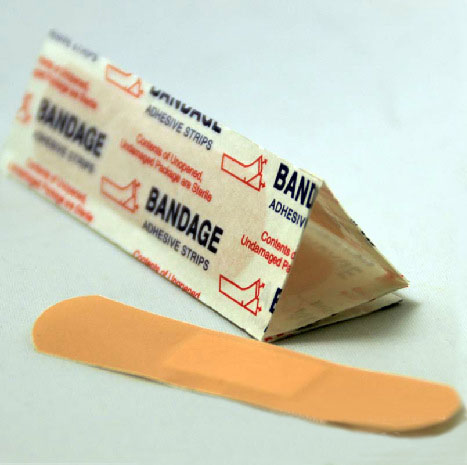

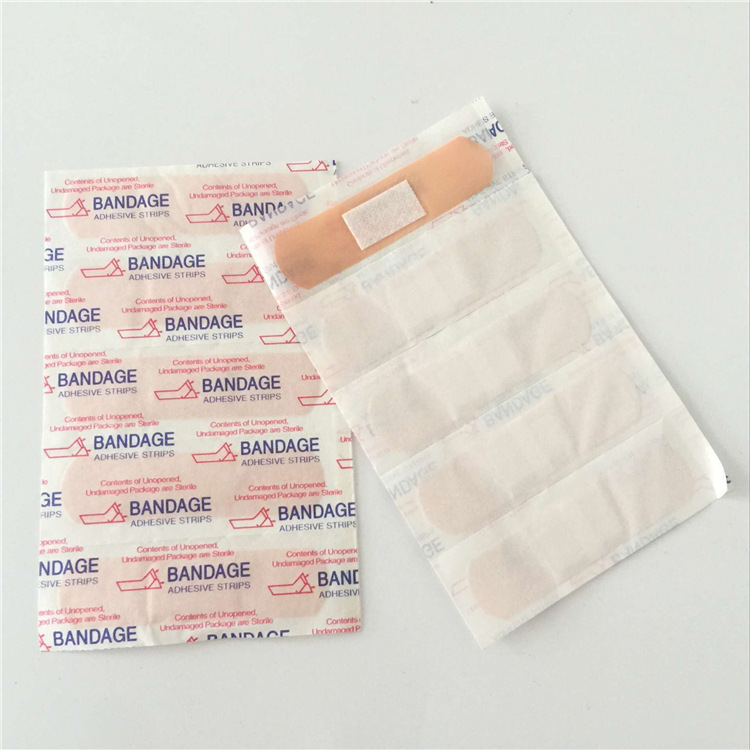

Automatic band-aid packaging machine is our company's latest research and development of a band-aid forming and packaging all-in-one machine, which automatically completes continuous rolling cutting, lamination, forming cutting, and automatic packaging of tape, cotton, and release paper.It is suitable for processing and packaging PE waterproof band-aids, PU band-aids, elastic cloth band-aids and other band-aid products.
Features:
1. Bags can be made using either hot or cold sealing methods
2. Automatic control function for tension of raw material rolls.
3. Using more advanced motion controllers instead of traditional PLCs, each workstation is controlled by servo motors, including adhesive substrate peeling, cotton core traction roller cutting, forming traction, forming roller cutting, packaging traction, and packaging roller cutting
Main Data:
Name: Automatic Band-aid Packaging Machine
Model: PPD-BAM2500
Bandage patch specification: 72 * 19mm for reference. Maximum product 100 × 22/Packaging bag 130 × 40mm
Specification of bottom support tape: Φ≤ 400mm, width ≤ 130mm, inner diameter of paper core 76.2mm
Machine speed: 75 meters/minute, up to 2500 pieces/minute
Total power: 220V, 50HZ, 9KW
Weight: 2000 kg
Packing size: 3800*1400*1950mm(L*W*H)
