4 Side Sealing&Packaging Machine

Share to:

Send Inquiry

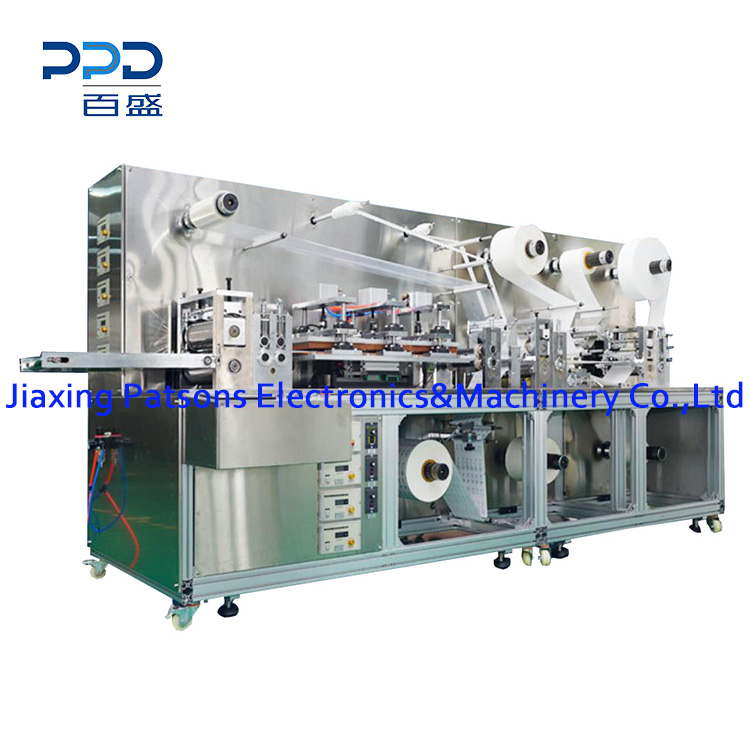

Medical I.V Cannula Dressing Patch Remaining Needle Patch Packing Machine

PPD-RNP100

Medical I.V cannula dressing patch retaining needle patch packaging machine is automatically completed by one machine, and the continuous rolling cutting, compounding, forming cutting and automatic packaging of tape+cotton+release paper.

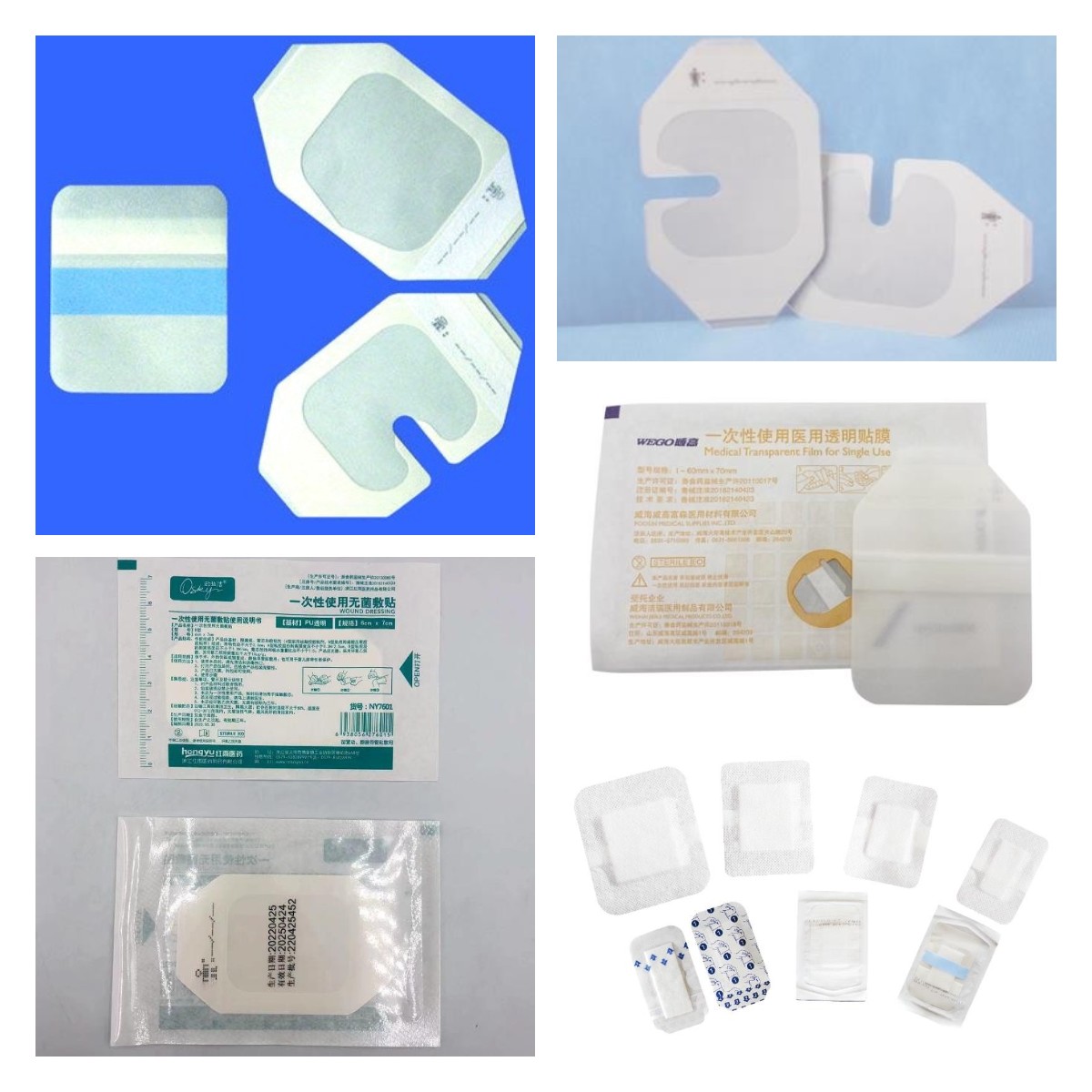

Retaining needle patch packaging machine is mainly used for the production of sterile application products such as packaging indwelling needle patch, infusion patch, navel patch, etc.

Features:
1. Machine adopts advanced servo technology, PLC programmable control intelligent control of the whole machine operation, color touch screen operation interface, simple in operation.
2. Accurate pasting, film delivery, stable material delivery, and accurate bag cutting.
3. Double packaging material shelf: paper+film, paper+paper bag prevention.
4. It is made of excellent materials, with high hardness and strong impact resistance.
5. Craftsmanship, fine workmanship, smooth and flat surface.

Technical Data:

Name: Medical I.V Cannula Dressing Patch Remaining Needle Patch Packing Machine

Model: PPD-RNP100

Application specification 150x100mm

Package specification: 200x150mm

Specification of backing tape: OD: max400mm, Width: max200mm, ID: 76mm

Speed: max100pcs/min

Voltage: 220V, 50HZ

Power: 6kw

Weight: 750kg

Packing size: 2200x1400x1600mm
